Slurry Pump Rubber Parts For Warman Pump AH Replacement

Slurry Pump Parts ( Rubber , Polyurethane ) For Warman Pump AH Replacement

1.5/1B-AH—-2/1.5B-AH—-3/2C-AH—-4/3D-AH—-6/4D-AH—–8/6E-AH—–10/8E-M—–10/8ST-AH—–12/10ST-AH—-14/12ST-AH—-16/14TU-AH—-20/18TU-AH
300S-L—-350S-L—-400ST-L—-450ST-L—-8/6E-AH—-10/8ST-AH—-12/10ST-AH—-600TLR—-700TLR—-800TLR—-600GSL—-800GSL

Categories: .

Slurry Pump Parts ( Rubber , Polyurethane ) For Warman Pump AH Replacement
Rubber Lining Pump Parts takes metallic case as a base material, adopting high-quality wear-resistant corrosion-proof rubber material and mould-forming through special sulphurizaiton technology, which is awarded with national patent (Patent No.: ZL01-259401.6)

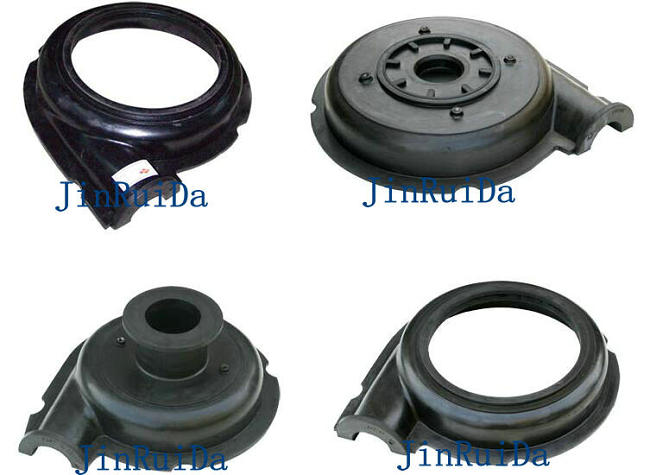

The Rubber Lining Pump Parts generally include front guard plate, front guard sleeve, impeller, rear guard plate, and rear guard sleeve. See the following figure.
Rubber Lining Slurry Pump Parts Specifications:
♠Series of Rubber lining over-flow parts for Warman pump: 1.5/1,2/1.5,3/2,4/3,6/4,8/6,10/8,12/10,14/12,16/14.
♠Series of PNJ rubber lining for sand pump: 2PNJ,4PNJ,6PNJ,8PNJ,and 10PNJ.
♠Series of Rubber Lining Pump Partsof ZJ slag and slurry pump: 40ZJ,50ZJ,65ZJ,80ZJ,100ZJ,150ZJ,200ZJ,250ZJ,300ZJ,and 350ZJ;
♠Series of Rubber Lining Pump Partsfor ZGB slag and slurry pump: 65ZGB(P),80ZGB(P),100 ZGB(P),150ZGB(P),200ZGB(P),250ZGB(P),and 300ZGB(P)
♠All the supporting products of rubber pumps Parts used in Shijiazhuang Qiangda Group.
♠Note: The guard sleeve of the ZK800TLR Rubber Lining Pump Parts of desulphurizing pump is the largest and unique guard sleeve in China at present.
Rubber Lining Slurry Pump Parts Features:
Customization: The rubber lining pump case is patented and may be customized. The metallic pump case may be reutilized.
Wear resistance: It features long service life. The testing worn result is 0.02~0.10 cm3/1.6km, which is 0.3-2 times, or above, for that of an alloy guard sleeve.
Corrosive resistance: It may be resistant to corrosion due to all kinds of acid, alkali, salt, and sea water. Adoption of synthetic rubber lining is made for over-flow parts, applicable for suspending particles with pH=0.5-14, a temperature within 100℃, H2SO4 with a concentration of 70% or below, salt and alkali with a concentration of 30% or below, and NaOH with a concentration of  30% or below as well as the other non-organic acids, which is provided with high temperature (up to 150℃)resistant rubber lining to meet the demands of the users.
Interchangeable: It may be interchangeable with and supportive to Warman and famous domestic manufacturers, with fast, easy connecting means.
Meanwhile, we may supply all kinds of metallic spare parts for over-flow components depending on the demands of the customers.
+++++++++++++++++++++++++++++++++++

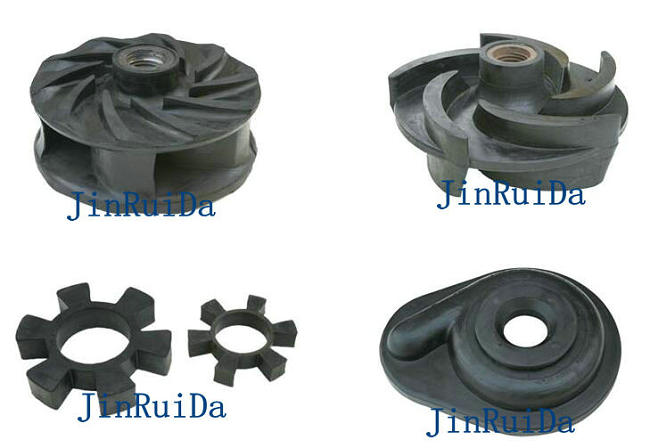

Warman Pump Replacement Parts Rubber Impeller
All Of Slurry Pump Warman Parts we can Offer as bellow:
♠Warman Slurry Pump Replacement Parts 1.5/1B-AH
B1052 R55 , B1017 R55 , B1036 R55
♠Warman Slurry Pump Replacement Parts 2/1.5B-AH
B15127 R55 , B15017 R55 , B15036 R55
♠Warman Slurry Pump Replacement Parts 3/2C-AH
C2127 R55 , C2017 R55 , C2036 R55
♠Warman Slurry Pump Replacement Parts 4/3D-AH
D3147 R55 , D3017 R55 , D3036 R55
♠Warman Slurry Pump Replacement Parts 6/4D-AH
E4147 R55 , E4018 R55 , E4036 R55 , E4083 R55
♠Warman Slurry Pump Replacement Parts 8/6E-AH
F6147 R55 , F6018 R55 , F6036 R55 , F6083 R55
♠Warman Slurry Pump Replacement Parts 10/8E-M
F8147 R55 , F8018 R55 , F8036 R55 , F8083 R55
♠Warman Slurry Pump Replacement Parts 10/8ST-AH
G8147 R55 , G8018 R55 , G8036 R55 , G8083 R55
♠Warman Slurry Pump Replacement Parts 12/10ST-AH
G10147 R55 , G10018 R55 , G10036 R55 , G10083 R55
♠Warman Slurry Pump Replacement Parts 14/12ST-AH
G12147 R55 , G12018 R55 , G12043 R55 , G12083 R55 , G12041 R55
♠Warman Slurry Pump Replacement Parts 16/14TU-AH
GAM14147 R55 , H14018 R55 , H14043 R55 , H14083 R55 , H14041 R55
♠Warman Slurry Pump Replacement Parts 20/18TU-AH
U18018TL1 R55 , U18043TL1 R55 , U18083TL1 R55 , U18041TL1 R55
♠Warman Slurry Pump Replacement Parts 300S-L
RSL30147 R55 , RSL30018 R55 , RSL30036 R55 , RSL30083 R55
♠Warman Slurry Pump Replacement Parts 350S-L
SL35147 R55 , S35083 R55 , S35041 R55
♠Warman Slurry Pump Replacement Parts 400ST-L
STL40147 R55 , TL40018 R55 , TL40043 R55 , TL40083 R55 , TL40041 R55
♠Warman Slurry Pump Replacement Parts 450ST-L
STL45147 R55 , TL45018 R55 , TL45043 R55 , TL45083 R55 , TL45041 R55
♠Warman Slurry Pump Replacement Parts 8/6E-AH
F6018TL1 R55 , F6036TL1 R55
♠Warman Slurry Pump Replacement Parts 10/8ST-AH
G8018SRTL1 R55 , G8036TL1HS1 R55
♠Warman Slurry Pump Replacement Parts 12/10ST-AH
G10018TL1 R55 , G10036TL1 R55
♠Warman Slurry Pump Replacement Parts 600TLR
600TLR-020 R55 , 600TLR-030 R55 , 600TLR-050 R55
♠Warman Slurry Pump Replacement Parts 700TLR
700TLR-020 R55 , 700TLR-030 R55 ,  700TLR-050 R55
♠Warman Slurry Pump Replacement Parts 800TLR
800TLR-020 R55 , 800TLR-030 R55 , 800TLR-050 R55
♠Warman Slurry Pump Replacement Parts 600GSL
GSL60018 R55 , GSL60043 R55
♠Warman Slurry Pump Replacement Parts 800GSL
GSL80018 R55 , GSL80043 R55 , GSL80041 R55
If any Requirement about Above Rubber Parts, Please contact us By email, we will reply you ASAP.
+++++++++++++++++++++++++++++++++++++++++++++++
The Slurry Pump Parts For Warman Pump AH Replacement are great wear resistance and corrosion resistance, usually used for acid working conditions. Such as tailing in mining industry, slurry with small particles and no rough edges. The whole displacement part includes Cover Plate Liner, Throat bushing, Frame plate liner, Frame Plate Liner Insert. The rubber spare parts are made of Natrual Rubber, code is SR26, SR55 and SR33, which gurantees excellent performance including wear resistance, chemical resistance , waterproof and higher operating temperature range from -40-75?
The Slurry Pump Parts For Warman Pump AH Replacement dimension is same with High Chrome Alloy Impeller. We also could offer Rubber Slurry Pump with Metal Impeller. Impeller is the most important spare parts of a Centrifugal Slurry Pump. Centrifugal pumps need impeller to produce the centrifugal force which processing the slurries. The centrifugal force is generated by the impeller when it runs to a certain speed.
Rubber Pump Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
1. The impeller are natural rubber lined, providing superior erosive resistance in fine particle slurry applications plus offer ease of impeller change-out, in order to reduce over all maintenance costs and maximize wear life.
2.The components are engineered with 3D drawing and come with a 100% guarantee.
3. Higher productivity, increased profitability and ease maintenance
4. .This liner is installed as a single unit to reduce over all maintenance costs and maximize wear life.
5. Provide the best quality products with reasonable price and good after-sales service.
6. application: designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments
