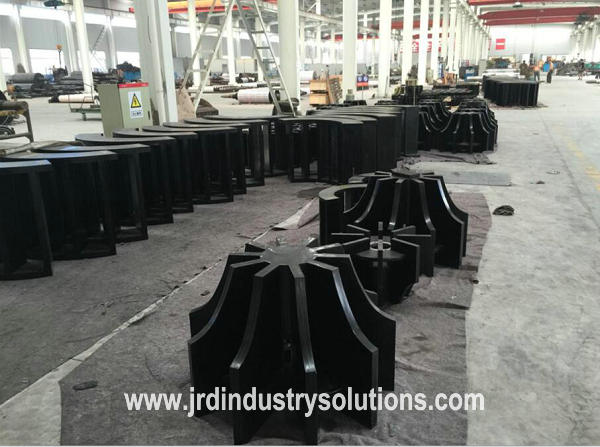

Rubber Rotor Stator For Flotation Machine

Categories: .

Flotation Machine Rubber Rotor & Stator Are Mainly Formed By Integral Vulcanization Of Steel Framework And Wear-Resistant Rubber, Which Avoids The Falling Off Of Rubber Layer Caused By Splicing Or Sticking. The Steel Skeleton Needs To Be Manufactured In Strict Accordance With The Type Of The Flotation Machine That Has Positioning Holes, So That The Stator And Rotor Can Be Safely Installed. The Steel Skeleton Is Cut Linearly To Ensure That The Skeleton Size Strictly Conforms To The Drawings.

Argon Arc Welding And Cleaning Of Welding Slag Will Be In Place Step By Step. Finally, The Steel Skeleton Was Sandblasted And Acid Washed To Remove Grease. Ensure That The Vulcanized Rubber Is Integrated As a Whole. When The Whole Vulcanization Process, The Vulcanization Time As High As 3 Hours. The Rubber Stator And Rotor Of Flotation Machine Produced By Our Company Are Jointly Worked By All Colleagues In Every Process. Ensure That Every Product Can Be Safely Delivered To Customers.

Our Company Independently Develops And Designs, Uses Excellent Wear-Resistant Rubber To Produce The Rubber Stator And Rubber Rotor Of Flotation Machine. The Size Of Flotation Stator And Flotation Rotor Ranges From 50m3 To 320m3.

Features

1, The Balance Precision Is Excellent, The Work Is Stable And The Vibration Frequency Is Low.
2, It Has Stable Performance, High Wear Resistance And Optical Corrosion Resistance.
3, The Structure Is Simple And Easy To Operate, And The Design Is Unique And Excellent.
4, Improve The Efficiency Of Flotation;
5, Large Volume, Small Density, Easy Installation And Replacement;
Flotation Machine Stator And Flotation Machine Rotor Models Are Complete, Especially The Large Stator And Rotor: 320 Cubic Meters (Currently The Largest In The World), 200 Cubic Meters, 160 Cubic Meters, 130 Cubic Meters, 100 Cubic Meters, 70 Cubic Meters, 50 Cubic Meters And Other Series Of KYF, XCF Flotation Machine Rotor And Stator.

Design And Technology

Because Of The Wear Phenomenon Caused By Slurry Flow In The Flotation Machine Trough, The Stator And Rotor With Thicker Rubber Blades Are Used To Improve The Wear Resistance Of The Rotor And Stator.

After Production And Processing, Our Company Will Carry Out Wear Test And Operation Balance Test To Ensure That The Final Product Can Be Used Safely And Efficiently.

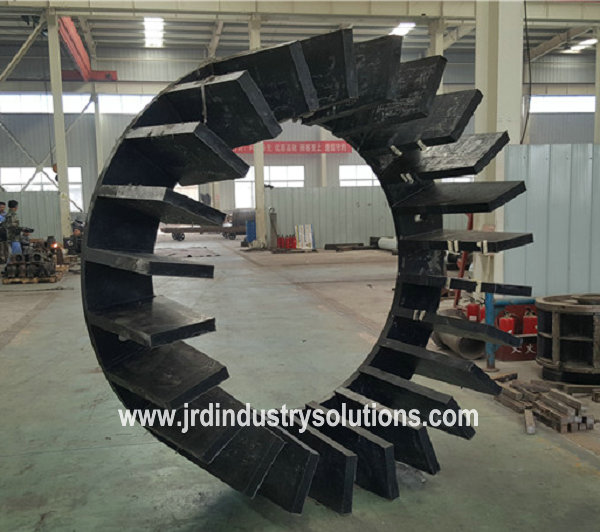

Rubber Stator Is An Important Part Of Flotation Tank Of Flotation Machine. a Concentric Circle Is Composed Of Several Blades In Counterclockwise Order, With Large Clearance, So As To Facilitate The Flow Of Fluid In The Groove. The Stator Is Installed At The Bottom Of The Flotation Tank And Concentrically Surrounds The Rotor At The Bottom. The Stator And Rotor Of Flotation Machine Are All Wrapped By Wear-Resistant Rubber.

Function

The Stator And The Back flow Plate Of The Flotation Machine Both Have The Ability To Eliminate The Whirlpool Caused By The Rotation Of The Mud Fluid And Keep The Liquid Level Balanced And Stable. The Mud Fluid Flowing From The Impeller Clearance Is Affected By The Rotation Of The Blades To Form a New Vortex, So As Not To Form Too Many Bubbles. Therefore, The Design And Production Process Of The Stator And Rotor Of Flotation Machine Is Particularly Important. The Most Important Two Aspects Are The Safe Distance Between The Rubber Stator And The Bottom And The Opening Rate.
